evereast medical Unified RF Injection Electrode

Unified Radio Frequency Cannula

Desccription:

Combined disposable RF electrode probe and RF cannula
Other name: hybrid RF cannula
with adaptable cable, can collect to following RF lesion generator
Cosman RF lesion generator, Baylis RF lesion generator, NeuroTherm RF lesion generator, Stryker RF lesion generator, Thermedico RF lesion generator, Diros RF lesion generator, BNS thermolesion generator, inomed lesion generator

We're here to help:
Easy ways to get the answers you need.

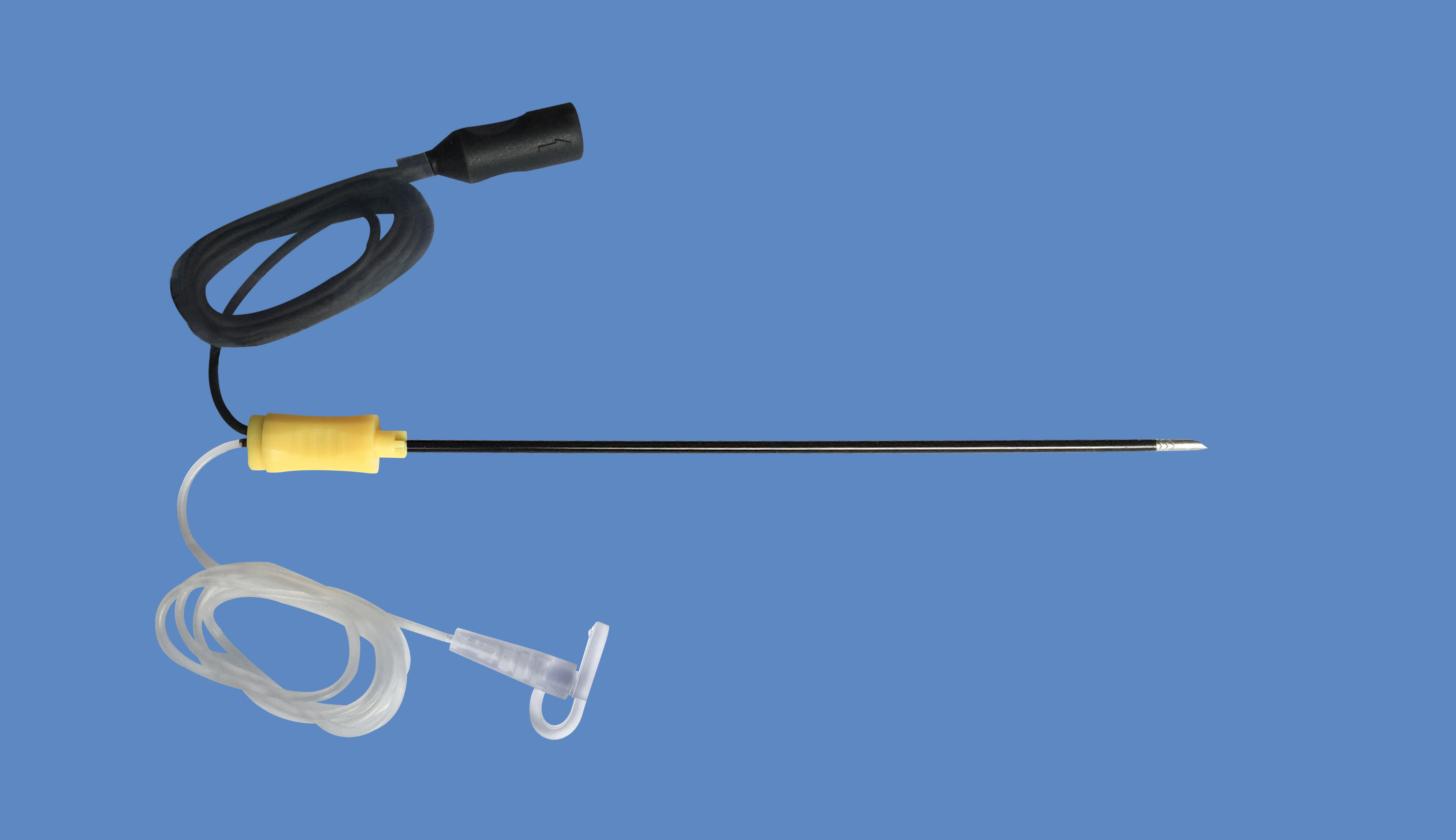

Combined disposable RF electrode probe and RF cannula

It comprises a RF Cannula, an electrode, and long flexible tubing connected to an injection port all in one.

Exchanging electrode probe and syringe, and all involved operational steps, will no longer be necessary after localizing a nerve’s proper position. Any risk of dislocation during removal and re-insertion of the electrode probe or during connection, application and removal of the syringe is therefore eliminated. and engineered to minimize steps due to the all-in-one design.

Unified Electrode canula are single use, eliminating Cross Contamination Issues.

Unified Electrode canula body Insulated with a high-grade medical Teflon-coating.

Size	Length (mm)	Active tip (mm)	Type
20	150	5	Echo Straight
20	150	10	Echo Straight
20	100	5	Echo Straight
20	100	10	Echo Straight
20	60	5	Echo Straight
21	100	5	Echo Straight
21	100	10	Echo Straight
21	60	5	Echo Straight
18	150	10	Straight
18	100	10	Straight





16	150	10	curved
16	100	10	curved
16	50	6	curved
16	50	10	curved
18	150	10	curved
18	100	10	curved
18	60	5	curved
